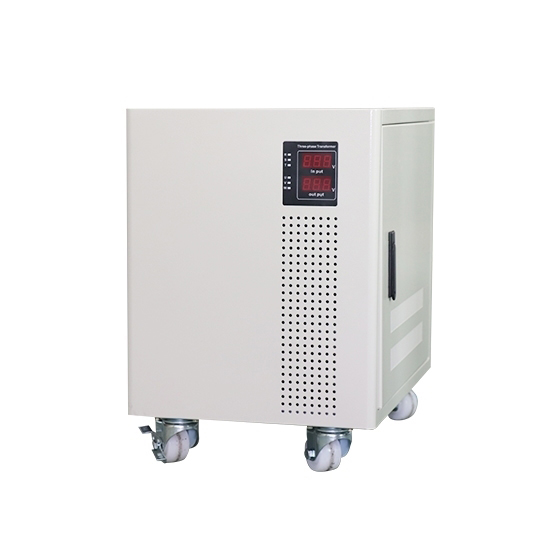

A three-phase isolation transformer is an essential electrical device designed to transfer electrical energy between three-phase power systems while maintaining complete galvanic separation between the primary and secondary windings. Unlike conventional transformers, this isolation creates a protective barrier that prevents direct electrical contact between input and output circuits, making it particularly valuable in industrial, commercial, and safety-critical applications.

These transformers typically feature capacities ranging from 4 kVA up to 300 kVA or more, accommodating primary and secondary voltage configurations from 120V to 1140V depending on specific requirements. The standard design incorporates three separate primary windings and three separate secondary windings, one for each phase, physically and electrically insulated from one another while wound on a common core. This construction allows magnetic ***** for energy transfer while maintaining strict electrical isolation between windings.

The working principle relies on electromagnetic induction. When three-phase alternating current flows through the primary windings, it generates a varying magnetic field in the transformer core, which induces voltage in the secondary windings proportional to the turns ratio between windings. Because there is no conductive path between primary and secondary sides, voltage fluctuations, surges, and electrical noise present on the input side cannot directly transfer to the output side, protecting sensitive downstream equipment.

Common wiring configurations include Delta-Delta, Wye-Wye, Delta-Wye, and Wye-Delta connections, selected based on system voltage requirements and desired phase relationships. The Dyn11 configuration is frequently employed, particularly in industrial settings where phase displacement considerations are important for proper system operation.

Key advantages of three-phase isolation transformers include enhanced safety through reduced electric shock risk, surge suppression capabilities that protect equipment from voltage spikes, improved power quality via reduction of electrical noise and interference, and the prevention of ground loops that can cause equipment malfunction. The Faraday shield often incorporated in these designs further attenuates high-frequency noise and common-mode disturbances.

Manufacturers typically construct these units using high-temperature resistant enameled wire rated for 180°C or higher, oriented silicon steel cores for efficient magnetic performance, and insulation systems rated at H-class (180°C) or above. Electrical strength testing at 3000V AC for one minute ensures dielectric integrity, while insulation resistance measurements of 50 MΩ or greater confirm proper isolation. Operating efficiencies of 95% or higher minimize energy losses, with dry-type air cooling being the standard thermal management approach.

Applications span diverse sectors including printing and packaging equipment, petrochemical processing facilities, elevators, telecommunications infrastructure, industrial automation systems, and medical equipment where electrical isolation is mandatory for patient safety. The transformers are also employed in off-grid energy storage systems to isolate output terminals from input terminals, filter harmonics, and prevent inrush currents.

When selecting a three-phase isolation transformer, considerations include the power rating in kVA, primary and secondary voltage requirements, frequency (50Hz or 60Hz), winding material choice between copper and aluminum based on efficiency versus weight trade-offs, cooling method, and environmental operating conditions. Standard operating parameters specify ambient temperatures not exceeding 40°C, relative humidity below 85%, and altitudes under 2000 meters to ensure reliable performance and longevity.
