A control transformer, also known as an industrial control transformer, is a specialized electrical device designed to provide reliable, low-voltage power for control circuits in industrial machinery and automation systems. These transformers step down higher supply voltages—typically 480V, 240V, or 208V—to lower, safer voltages such as 120V or 24V, which are standard for operating contactors, relays, solenoids, timers, and other control components. The fundamental purpose is to isolate control circuits from the main power supply while ensuring stable voltage delivery for precise, repeatable equipment operation.

Control transformers are engineered with specific characteristics that distinguish them from general-purpose power transformers. They feature high inrush current capacity, typically rated at 3 to 10 times the nominal load current, which allows them to accommodate the momentary surge demands when magnetic components like contactors and solenoids energize. This inrush capability is critical because control circuits frequently switch inductive loads that draw significantly more current during startup than during steady-state operation. The transformer must maintain voltage regulation within acceptable limits—usually 90% to 95% of rated secondary voltage—under these brief overload conditions without excessive voltage drop that could prevent proper component actuation.

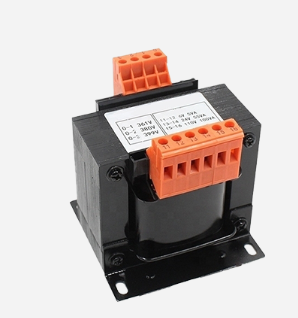

The construction of control transformers emphasizes durability and thermal resilience. They employ high-quality silicon steel laminations for the core to minimize eddy current losses and maximize magnetic efficiency. The windings utilize copper or aluminum conductors insulated with temperature-resistant materials, typically rated for Class B (130°C) or Class F (155°C) insulation systems. Enclosure designs range from open styles for cabinet mounting to enclosed configurations with IP ratings suitable for harsh industrial environments. Many units incorporate fuse blocks or terminal blocks on the primary and secondary sides for straightforward installation and protection coordination.

Voltage regulation represents a key performance parameter for control transformers. Unlike power transformers where some voltage variation may be tolerable, control applications demand consistent secondary voltage to ensure reliable operation of sensitive electronic and electromechanical devices. Manufacturers achieve this through careful design of the magnetic circuit and winding impedance, often resulting in slightly higher impedance than power transformers to limit fault currents while maintaining adequate regulation under load.

Control transformers find application across virtually every sector of industrial automation. In manufacturing equipment, they power the control circuits of motor starters, programmable logic controllers (PLCs), and human-machine interfaces. In heating, ventilation, and air conditioning systems, they provide low-voltage power for thermostats, actuators, and control panels. Elevator systems rely on control transformers for safe operation of door mechanisms and floor selection circuits. The transformers are also integral to conveyor systems, packaging machinery, machine tools, and robotic workcells where isolated, stable control power is essential for operational safety and precision.

Selection criteria for control transformers include determining the total inrush volt-ampere requirement of all control devices that may operate simultaneously, calculating the continuous volt-ampere load, and specifying appropriate primary and secondary voltages matching the available supply and required control voltage. Standard capacities range from small 50 VA units for simple control panels to 5000 VA or larger for complex automation systems. The transformer must be sized to handle the cumulative inrush of all components while maintaining voltage within the operating range specified by control device manufacturers.
